Lubrication and dust prevention measures for ball splines

　　Lubrication and dust prevention measures for ball splines

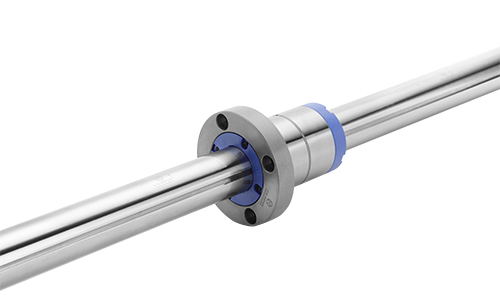

Ball spline is a type of rolling rail spline. By rolling the ball in the groove connected to the shaft, a larger allowable load can be achieved than when using a linear shaft sleeve. As a precision transmission component, maintenance and upkeep are essential. What maintenance measures should we pay attention to in our daily lives?
★ Lubrication
To prevent foreign objects from entering the spline nut or lubricant leakage, the ball spline is equipped with a special synthetic rubber sealing ring with strong wear resistance.
High quality lithium soap based grease No. 2 is installed inside the spline nut with a sealing ring (UU type seal at both ends and seal at one end). During high-speed operation or long travel
When using, please inject the same type of grease into the lubrication hole of the spline nut again after trial operation before starting the mechanical equipment.
Afterwards, please replenish the same lubricating grease as necessary according to the usage situation.
In addition, the replenishment time of lubricating grease varies depending on the usage conditions. Generally, when using it, the lubricating grease should be replenished or exchanged based on a running distance of 100km (6 months to 1 year).
★ Dustproof
If dust and other foreign objects enter the ball spline, it will cause abnormal wear and shorten the service life, so it is necessary to prevent foreign objects from entering the outer cylinder of the spline.
Therefore, when dust and other foreign objects are expected to enter, it is necessary to choose a sealing device or dust-proof device that meets the environmental conditions for use.
Hanyi's ball spline is equipped with a special synthetic rubber sealing ring with strong wear resistance as a dust-proof accessory. If higher dust-proof effect is required, some models are also equipped with sealing felt rings. For detailed information about the sealing felt ring, please consult THK.
In addition, Hanyi also produces circular telescopic dust covers. For more information, please contact the screw manufacturer at 15015122221
